Tool Tracker Advanced

Designed for error proofing & controlling fastening tools via either PLC or the Tools Controller. Tool Tracker Advanced allows for multiple tools to be used in one work cell, and track on either a static or moving part. Details such as the approach angle a tool takes to the fastener can also be controlled to avoid cross threading or other mishaps. Tool Tracker Advanced is easily taught by simply placing the tool (with affixed targets) where you want a fastening event, then clicking a mouse to create the work zone, this is repeated for each position in the sequence. When you’re working, the PLC enables or disables the tool depending on if the tool is in the correct work zone or not.

Tracking Moving Parts

The ability to track either static or moving parts makes the Tool Tracker Advanced an ideal choice for continuous or near continuous operations.

Poka-yoke/ Mistake Proofing

Tool Tracker when coupled with a PLC creates an in process poka-yoke system. Enabling the tool only when in the correct zone ensures the operator completes the work in the correct sequence.

Assisting Operators

Tracking the tool’s approach angle to the fastener, helps avoid costly cross threading. The approach angle is an adjustable variable to meet for your needs.

Freedom of Motion

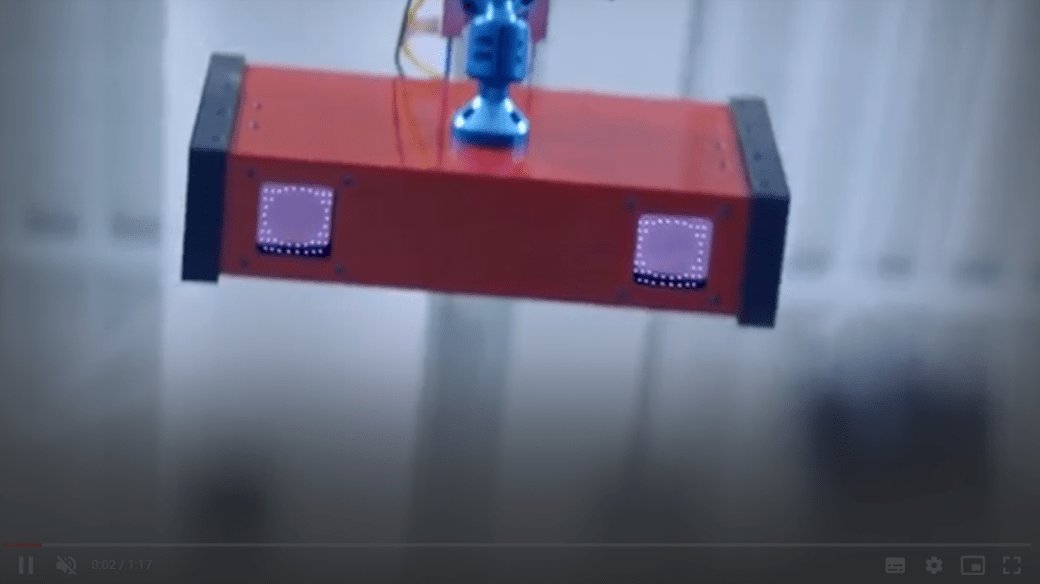

Fixed image modules do the tracking with no physical connection to the tool. The target array on the tool allows for 6 degrees of motion.

Technical Data

Core Competencies

  •  Tracks any handheld tool in 3D
  •  Targets Passive (Retro Reflective)
  •  Vision-based tracking system
  •  Poka-yoke changeover
  •  Large field of view
  •  Infrared cameras
  •  Track moving parts
  •  Multiple tool tracking

Technical Specs

  • Interface is achieved with standard protocols of ProfiNet or Ethernet IP, Digital I/O, or direct to manufacturer’s controller such as Stanley, Bosch or even Atlas Copco.

Tool Tracker deliVers unmatched 3D position accuracy at a great price.
